Quick answer: split the AI wrap and rebuild the spine
If the AI cover already contains a spine for a thick paperback, but your real book has a narrower spine, treat the file as source art rather than as a finished KDP cover. Crop or export the front and back cover portions separately, upload them into KDP Cover Creator, and let the editor calculate the real spine from trim size, page count, paper type, and bleed.
KDP paperback covers are full-wrap files: back cover, spine, front cover, and bleed. The standard bleed margin is 0.125 in on outer edges, and print artwork should usually be prepared around 300 DPI at final size. Those numbers matter, but the main fix here is visual: important text must stay inside the green safe zone, not on the trim line or across the spine fold.
| Best for | An AI-made paperback wrap where the front and back art look usable, but the generated spine is far wider than the real KDP spine. |
|---|---|
| Visible symptom | After you enter the correct trim size, paper type, and page count, part of the spine artwork appears on the front cover and part appears on the back cover. |
| Repair idea | Do not keep shrinking the whole wrap. Import the front cover and back cover as separate images, rebuild the spine text inside the real spine, then fit both images to the green safe zone. |
Why this happens with AI paperback covers
Many AI full-wrap images are drawn as a landscape poster. They can look convincing because they include a front cover, a back cover, and a thick center spine. But the image usually does not know your real KDP setup: 5 x 8 in or 6 x 9 in trim, white or cream paper, paperback or hardcover, and the exact final page count. Once the editor uses the correct page count, the real spine can become much narrower than the artwork's built-in spine.
That is why shrinking the entire image often makes the cover worse. It may pull the old spine text away from one edge, but it also shrinks front-cover typography, pushes back-cover copy toward the trim line, or leaves blank bleed strips. A cleaner repair is to keep the front and back images as separate panels, then build the spine text on top of the calculated spine area.
Step-by-step repair flow

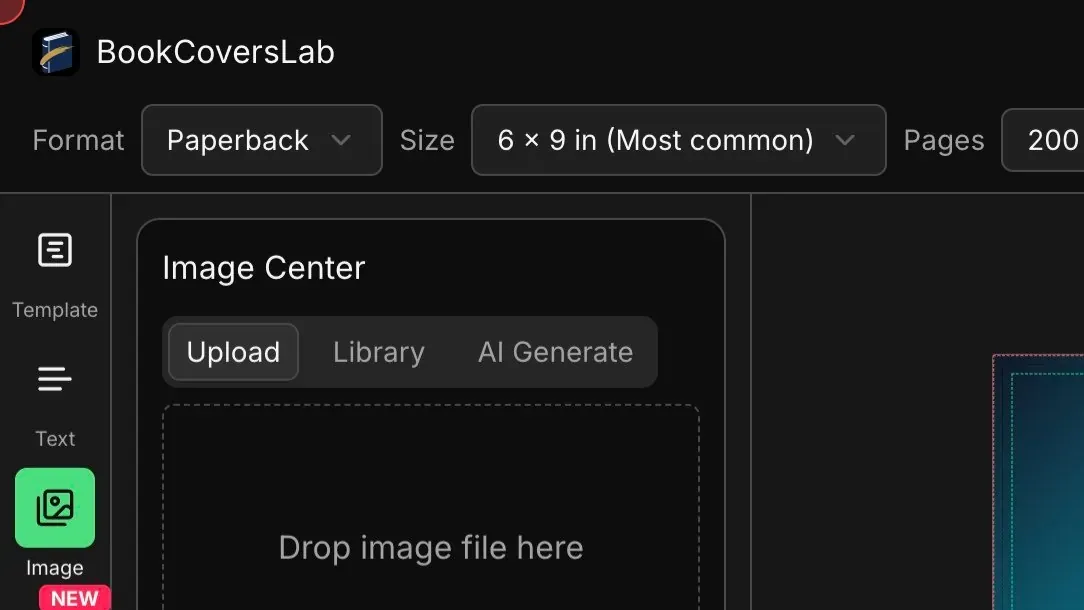

Upload the front cover first
Start with the front cover because it is the easiest part of the AI wrap to keep intact. Use the final front-cover art, not the full paperback wrap.

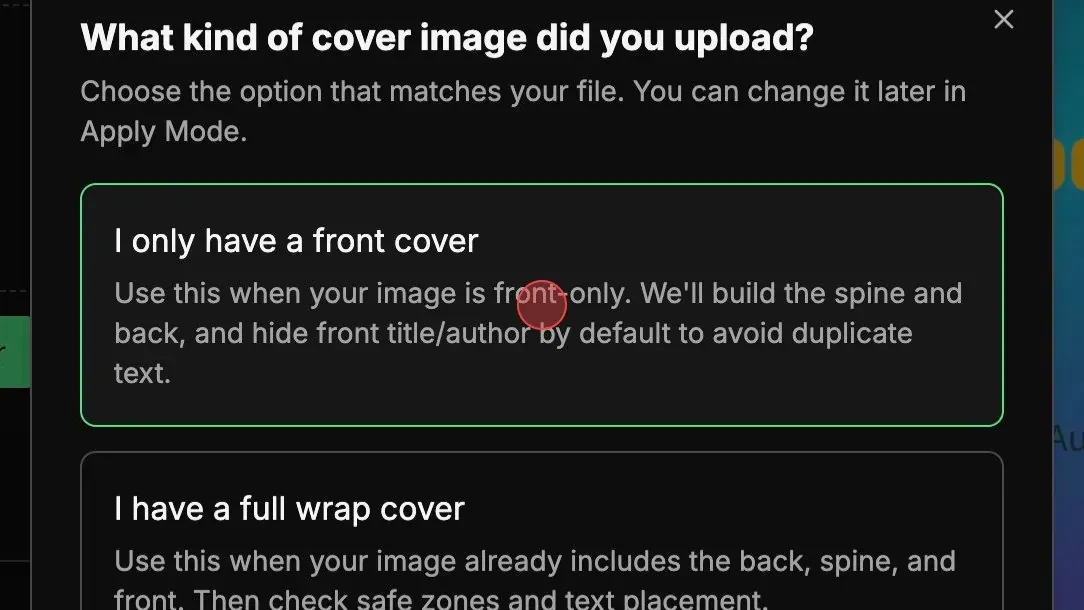

Choose “I only have a front cover”
This tells the editor to build a new KDP paperback canvas around your real trim size, page count, paper type, bleed, and spine width.

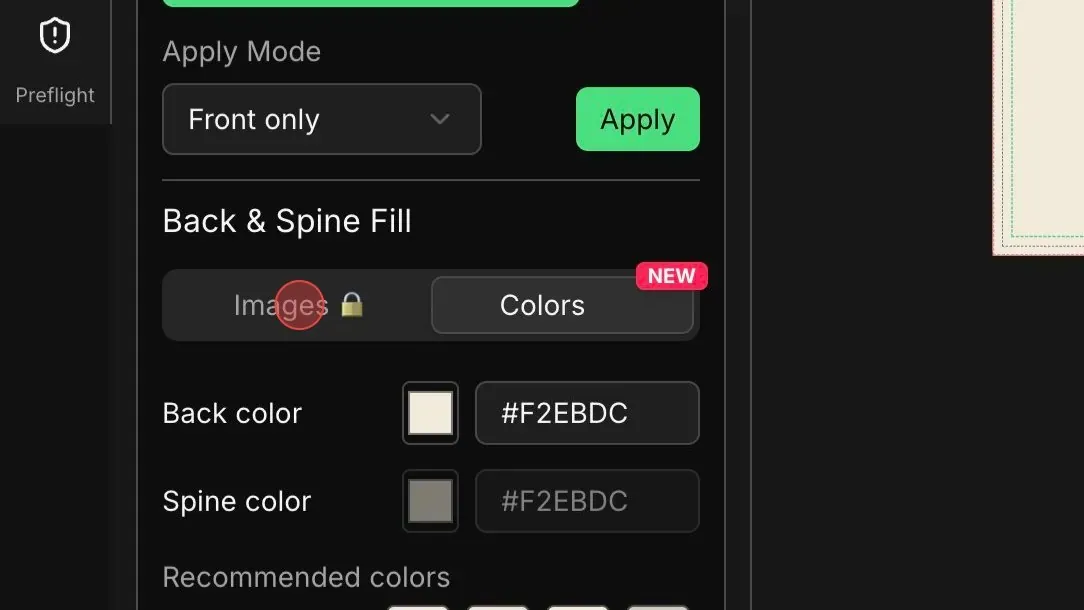

Open the Images tab
Go to the Images tab so you can add the back-cover artwork separately instead of forcing the original AI full wrap to match the wrong spine.

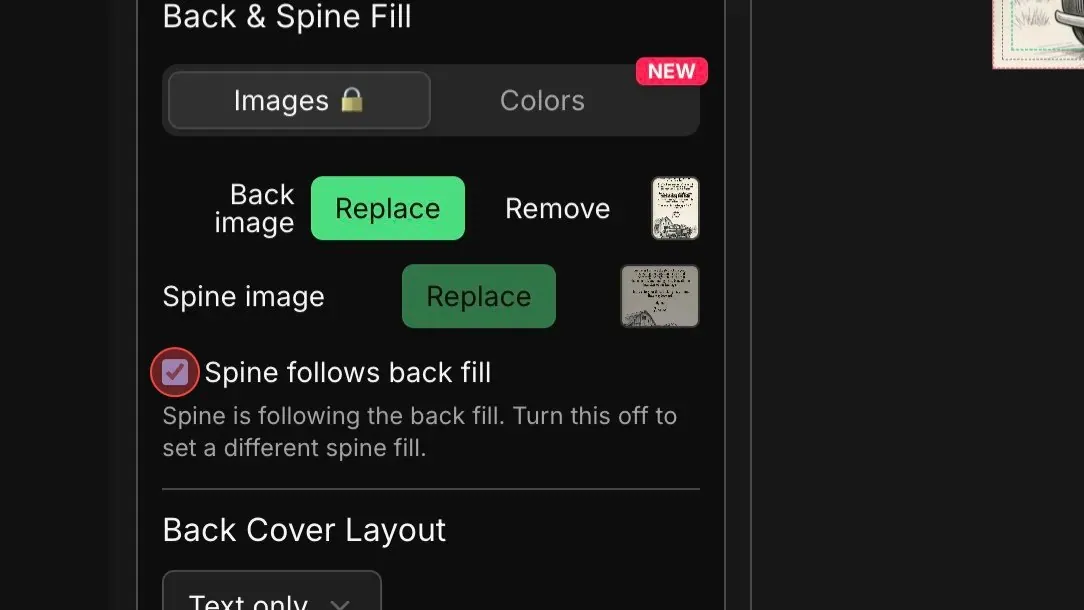

Upload the back image and disable spine follow
Upload the back-cover crop, then turn off Spine follows back fill. The spine needs its own color and text because the AI-generated spine width was not based on your real page count.

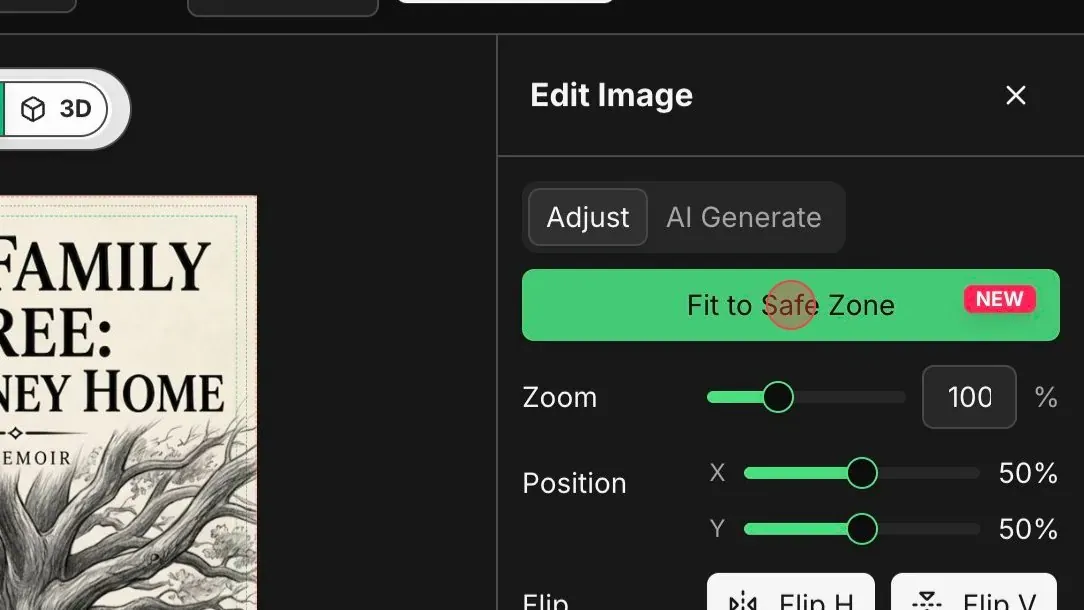

Fit each image to the safe zone
Select the front image or back image and click Fit to Safe Zone. This gives you a safer starting point before you fine-tune position and scale.

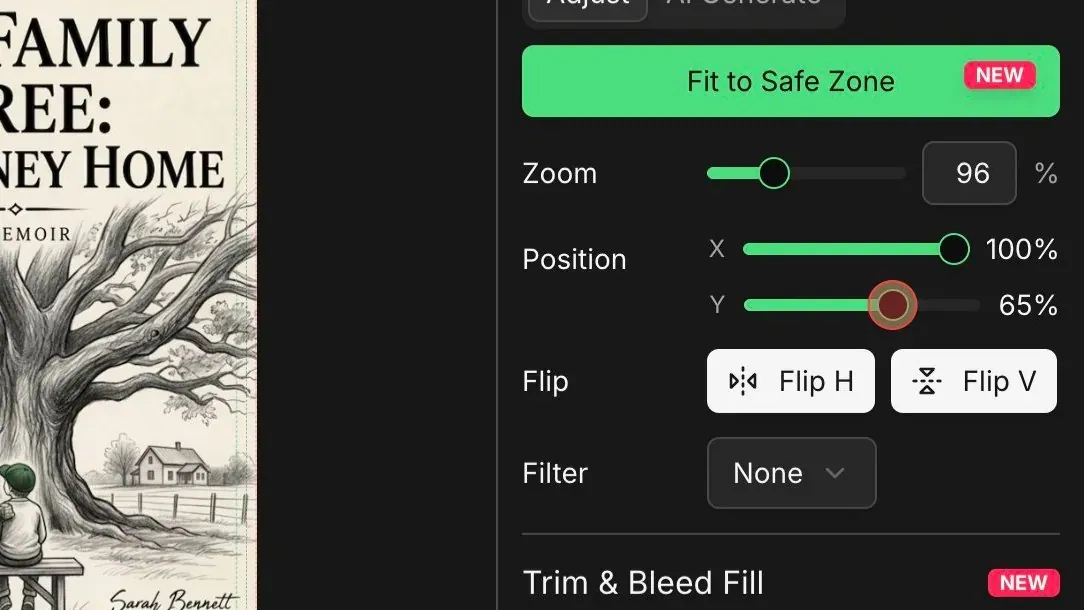

Move artwork until embedded text is safe
Nudge the artwork left, right, up, or down until embedded title, author, subtitle, and back-cover copy stay inside the green safe-area line.

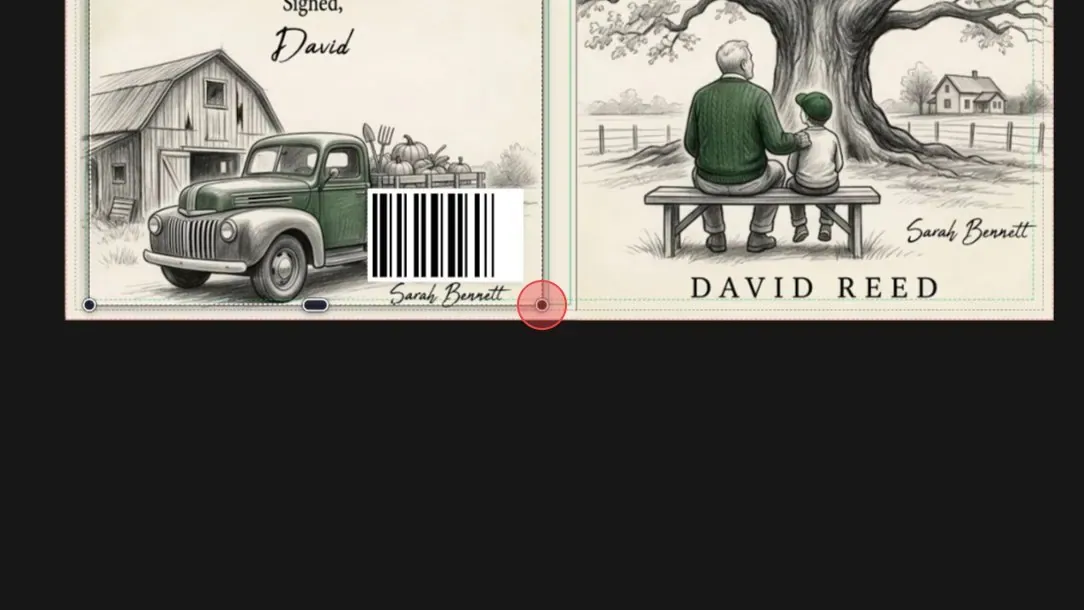

Drag and scale directly on the canvas if needed
If the sidebar controls are not enough, use the canvas handles. Keep checking the green safe line, the black trim line, and the red bleed edge while you adjust.

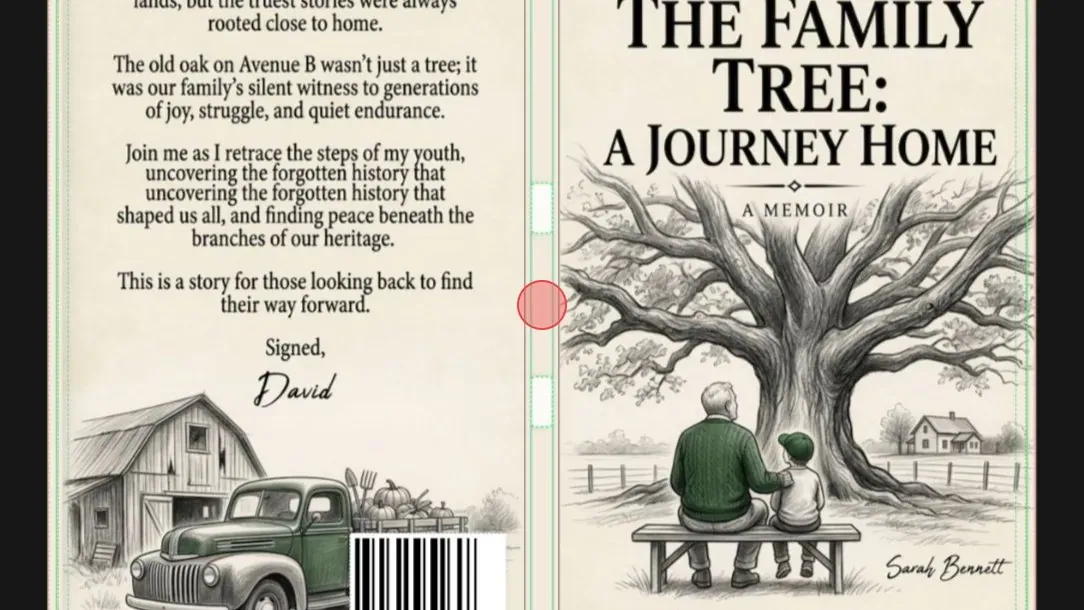

Click the spine area
Select the spine after the front and back images are positioned. The spine is now calculated from your real KDP setup instead of the AI image guess.

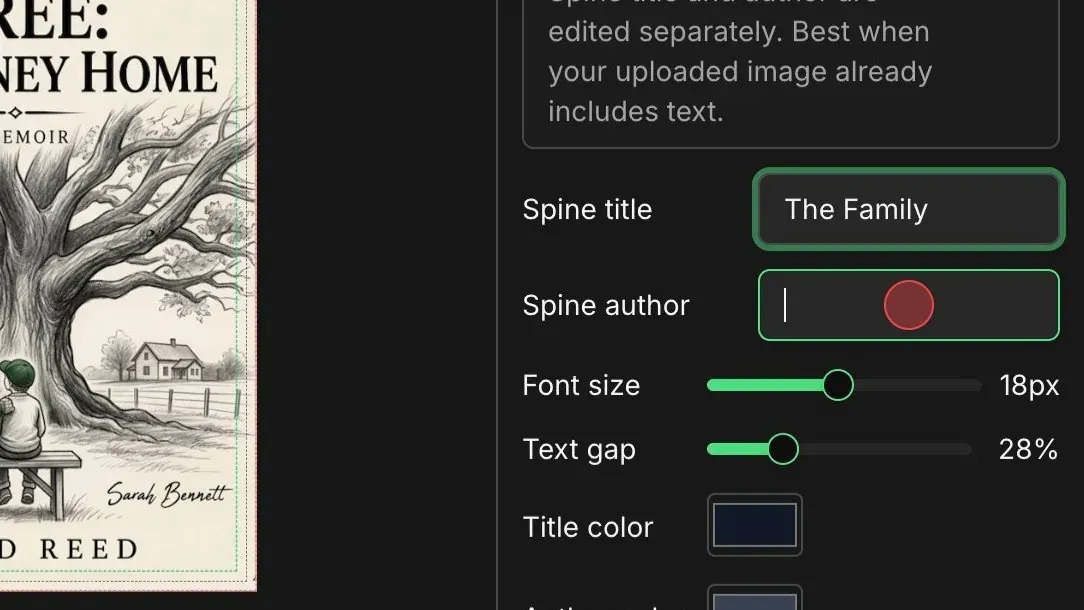

Add the title and author on the real spine
Add the book title and author name in the right toolbar. Reduce font size or hide spine text if the real spine is too narrow to keep the text readable and safe.

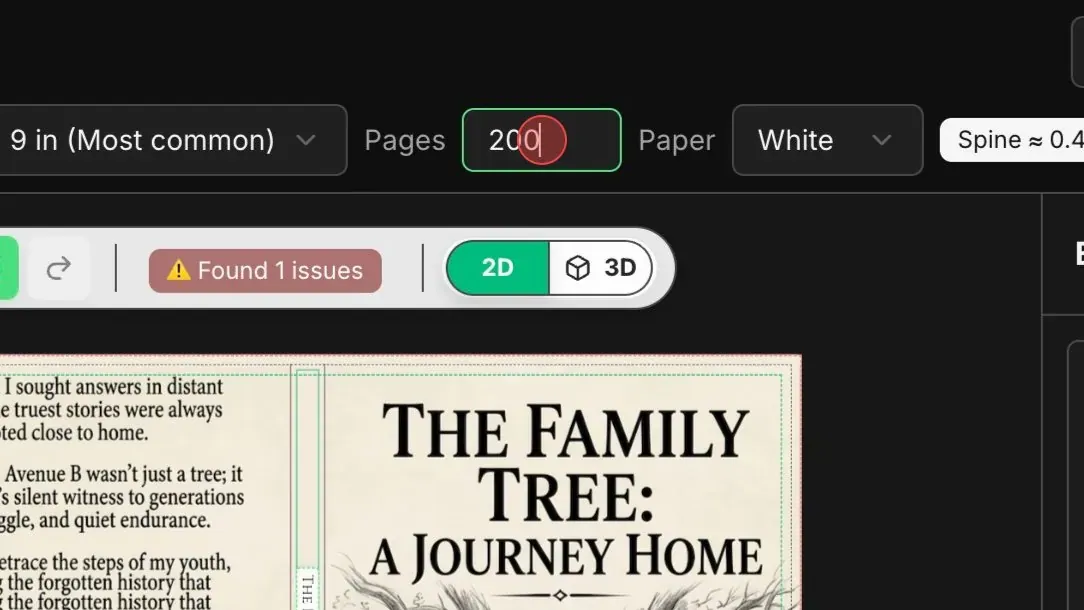

Adjust the page count and recheck the spine
Enter the final interior page count, then recheck the spine. Page count changes the full-cover width, so this field must match the PDF you will upload to KDP.
Advanced: understand image, spine, and bleed colors
The first 10 steps finish the main repair. The remaining screenshots show how the color controls behave. This is useful when an AI crop leaves a thin exposed edge, or when you want the rebuilt spine to feel connected to both cover panels.

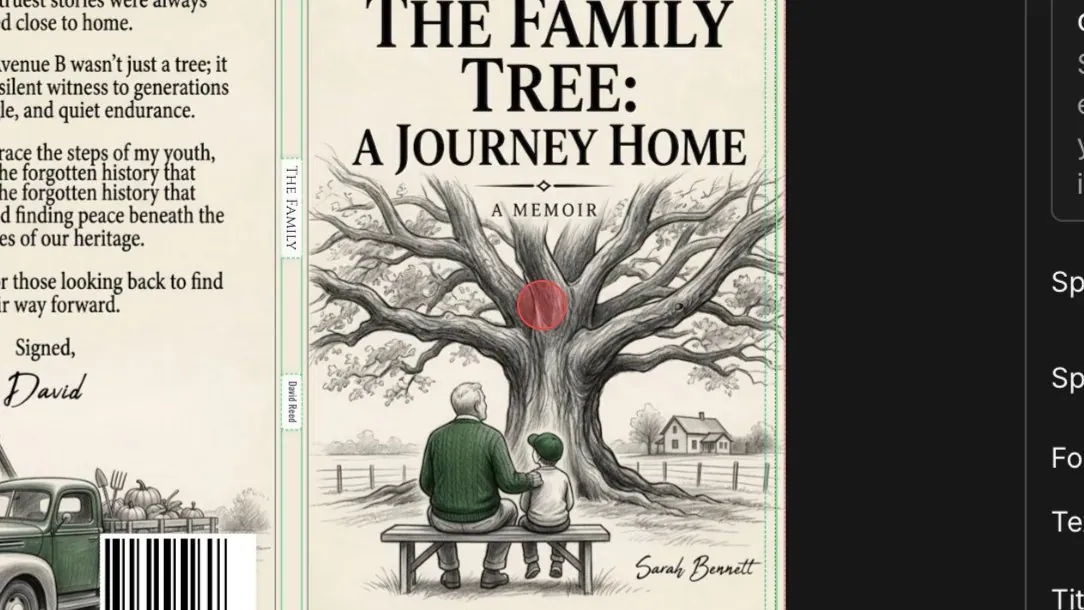

Select the front cover for bleed-color tuning
After the main repair is complete, select the front cover if you need to tune the bleed-area color around the image.

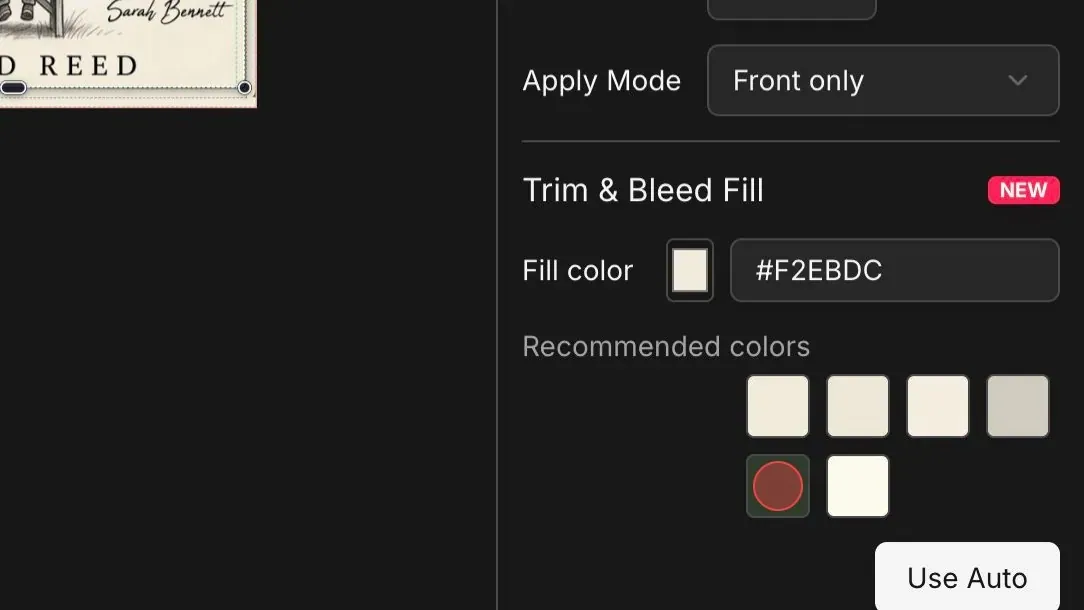

Adjust the front bleed fill color
Use the right panel to match any exposed bleed edge to the cover background. This helps prevent thin white strips after trimming.

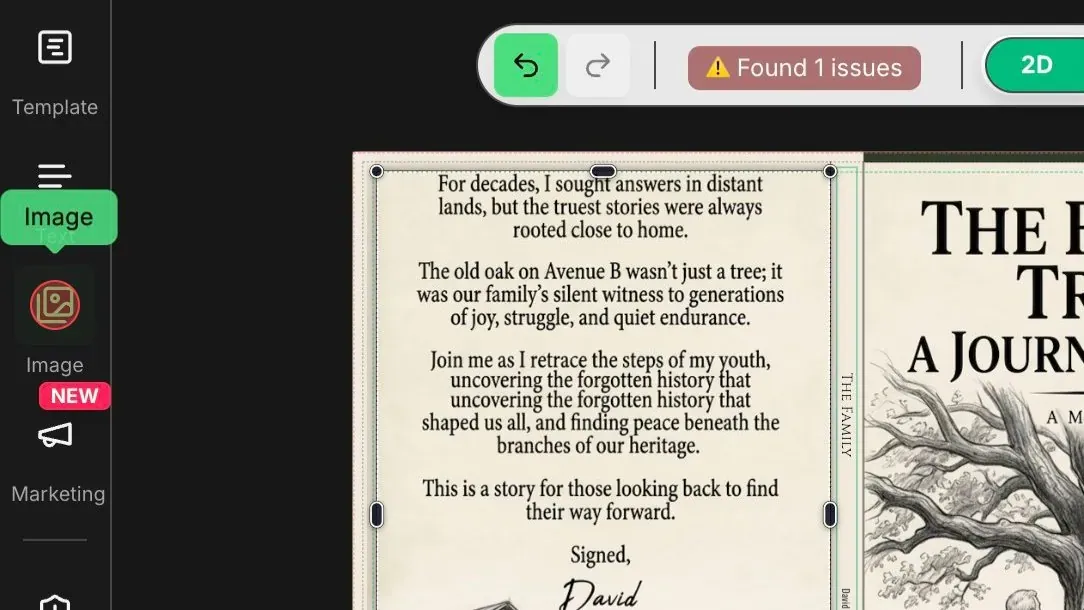

Open the Image controls
Open Image controls when you need to switch between image placement, bleed fill, and color behavior for each cover area.

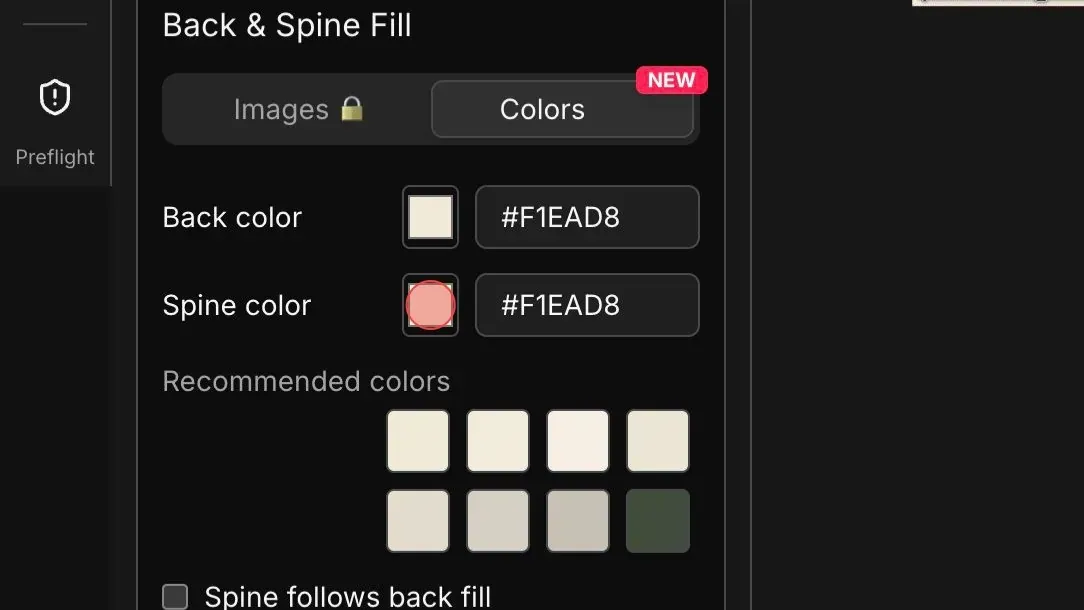

Change the spine color
Use Spine color to set the background behind the rebuilt spine text. Pick a color that connects naturally with the front and back art.

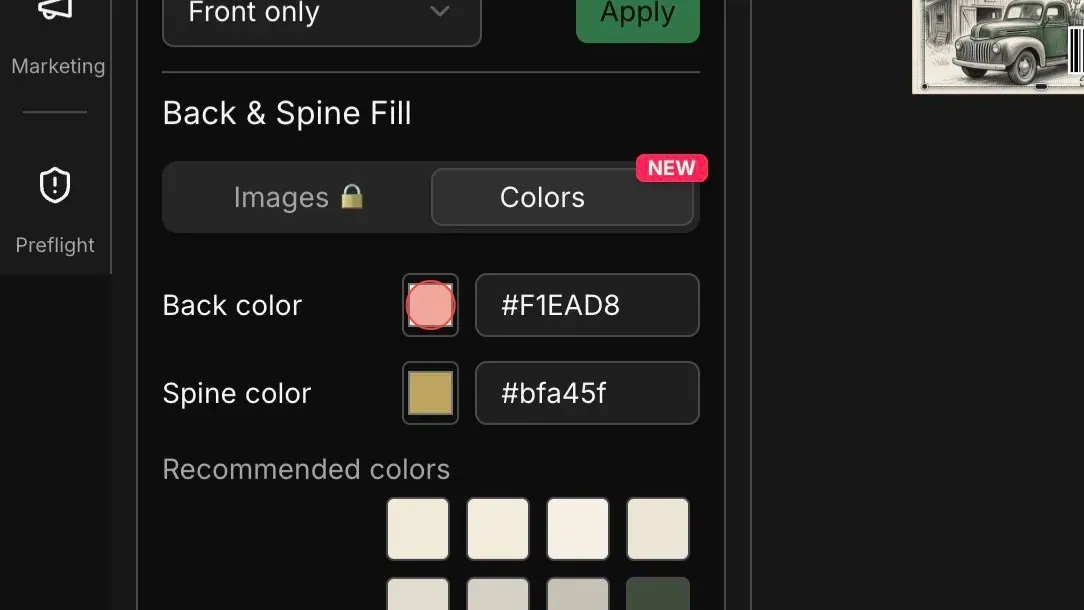

Know what Back color can and cannot change
Back color does not repaint an uploaded back-cover image. It only applies to a solid-color back cover, so use image bleed controls when a back image is already uploaded.

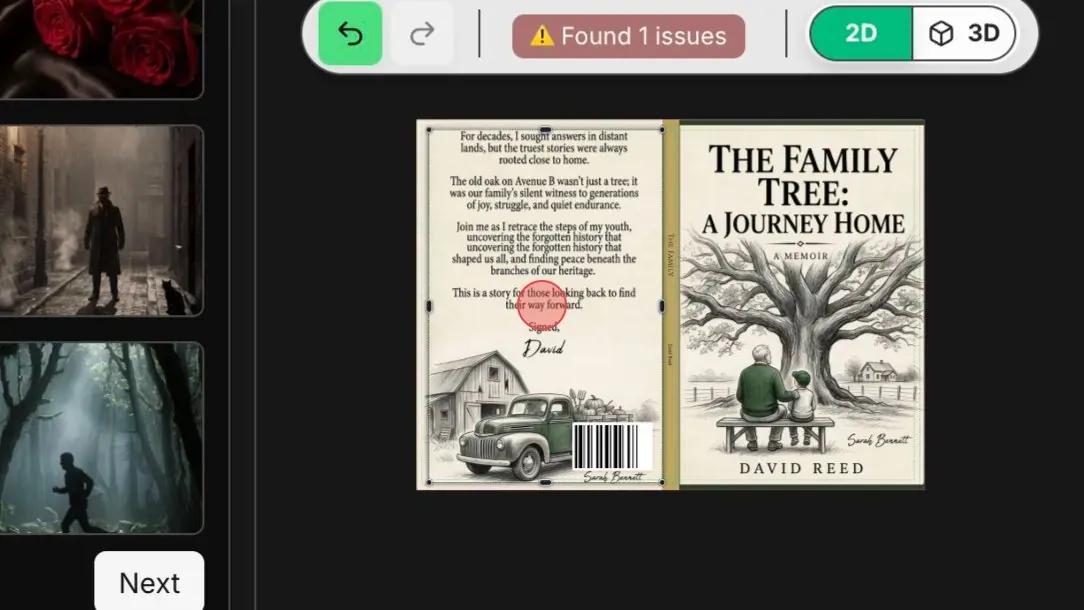

Click the uploaded back-cover image
Select the back-cover image itself when you need to reposition it or change how its edges fill the bleed area.

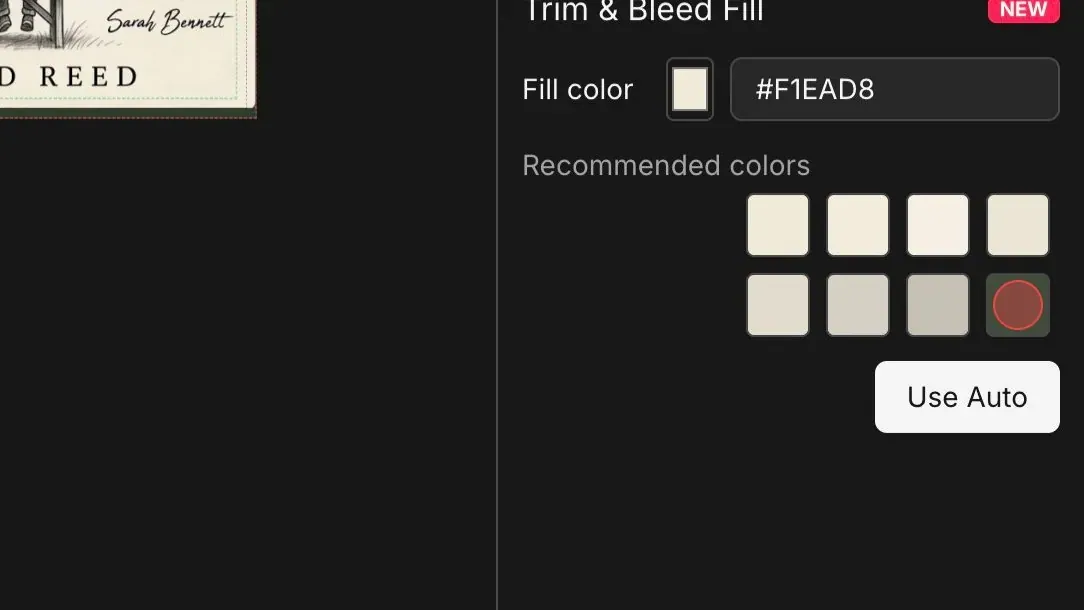

Adjust the back-cover bleed fill
Match the back-cover bleed fill to the artwork edge. This is separate from the spine color and separate from a solid-color back cover.

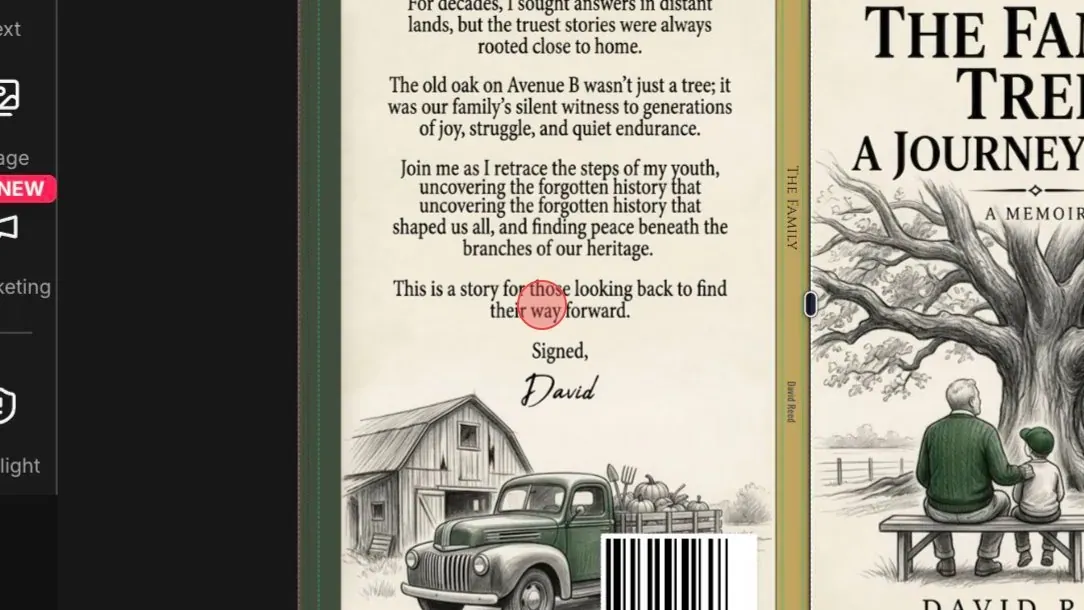

Use different colors to learn the zones
As a learning exercise, set different colors for the front, spine, and back. It makes the editable zones easier to understand before you export a real file.
Final precheck before upload
- Trim size, paper type, and Pages match the final KDP interior PDF.
- Front-cover title, author name, back-cover copy, logos, and faces stay inside the green safe area.
- Rebuilt spine text is centered inside the real spine and still readable at print size.
- Backgrounds and bleed-fill colors reach the red bleed edge with no blank strips.
- Barcode space is clear, and precheck no longer flags a safe-zone, bleed, size, or low-resolution problem.
FAQ
Why does spine text move onto the front and back cover?
The AI image was drawn as one full wrap with an estimated spine. When the real KDP page count creates a narrower spine, the old spine artwork no longer fits inside the calculated spine area.
Should I upload the AI full wrap as one image?
Not when the spine is dramatically too wide. Crop the usable front and back art into separate images, then rebuild the spine in the editor with the correct page count.
What line should text stay inside?
Keep important text inside the green safe area. Backgrounds can extend to the red bleed edge, but titles, author names, logos, and back-cover copy should not sit on the trim line.
Do I still need 300 DPI after the safe-zone repair?
Yes. A safe layout can still fail if the artwork is too low resolution at final print size. Run precheck before exporting the KDP-ready PDF.
